Bakery Products
Freezes bread dough, pizza dough, croissants, baked bread and buns while protecting structure and moisture.

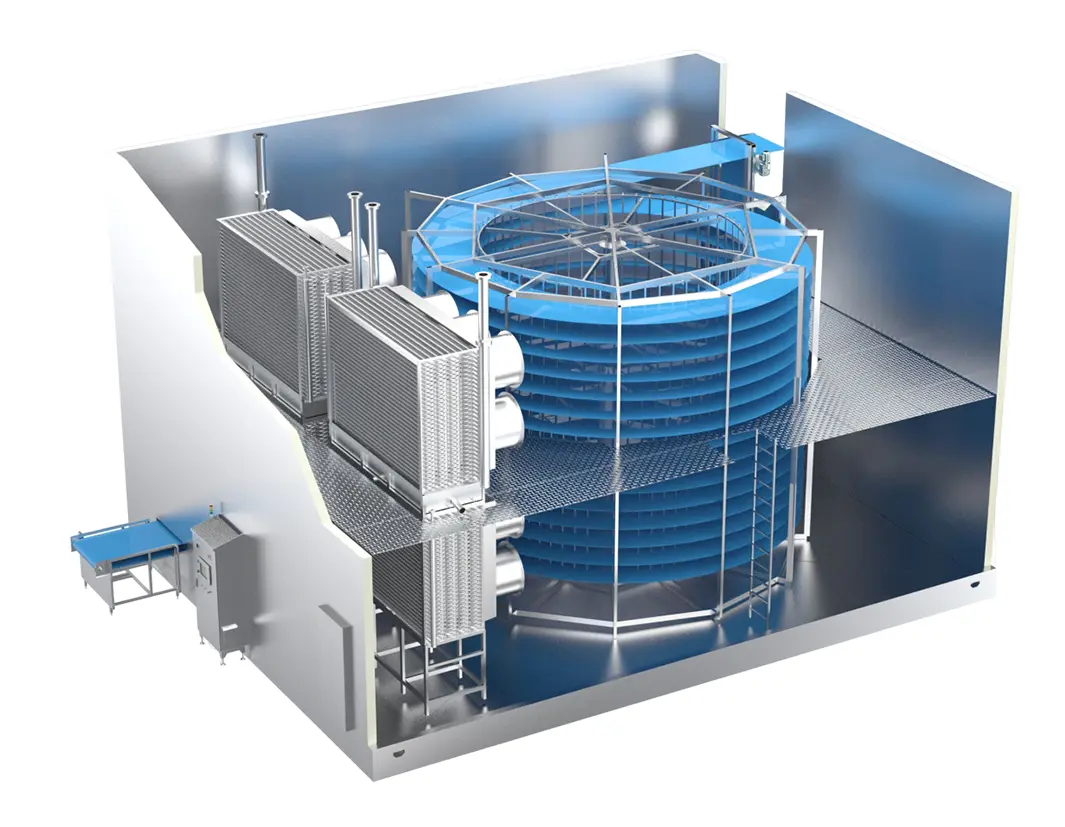

Spiral Freezer
The enclosure is designed for optimal insulation and waterproofing, with choices between fully welded or groove-tongue caulking.
Custom-built to meet specific customer requirements
200–10,000 kg/hr capacity
Capacity ranges from 200kg to 10000kg/hr
The structure's open design ensures total accessibility for easy cleaning and maintenance.
It includes a computerized control system with pre-programmed cleaning modes and an optional automatic CIP (Cleaning-in-Place) to reduce cleaning effort and time.
Product Features
Multiple Design Decisions, Supported by Data
Explore the key product features, including Large Sprocket / Chain Drive, Stainless Steel Mesh Belt, Finite Element Analysis, and the engineering advantages behind this system.
Large Sprocket / Chain Drive
- Synchronized Triple Drive
- SUS304 fully welded structure, heavy load, easy for maintenance.
- Variable belt speed.
Stainless Steel Mesh Belt
- Food-grade
- Its open structure is easy to clean,and available width range from 400 to 1,372mm.
- An optional edge guard prevents products from falling.
Finite Element Analysis
When designing a spiral freezer, structural analysis is performed to ensure its structural integrity during operation.
Efficient Evaporator
- The design was simulated with European professional heat exchanger software.
- All tubes are expanded hydraulically rather than mechanically. More uniform expansion and tighter fit between tube and fins. Improved heat exchanging performance.
- Variable fin pitch used to delay the frost formation on the fins surface. Longer frosting interval.
- Easy access and cleaning
- Tube material: Stainless steel, Aluminum Fin material: Aluminum
Insulated Enclosure
Continuous PIR panel fabrication line from German Hennecke. 50mm to 250mm thick. Limited combustibility.Fully welded stainless steel enclosure available as option.
Fully Welded Floor
Modular stainless steel fully welded floor, leak proof. Sloped floor, fast drainage through four drains at the corners. Easy Access.
Air Flow Design
- The cold and high velocity air flow is guided with the air baffles evenly through the product area.
- Minimum food dehydration, best heat transfer.
- Air shrouds provided to minimize cold loss at the opening of infeed and outfeed.
- Spacious access inside freezer for maintenance and cleaning personnel.
Intelligent Control System
- PLC touch screen, friendly interface, easy operation.
- Real-time display of equipment running status, temperature of each area, fault alarm.
- Preset freezing programs tailored for different products.
- Optional remote troubleshooting module.
Air Defrost System
- The ADF blows pulses of pressurized air of high velocity repeatedly over the evaporator fins while the products continue to run in the freezer.
- The freezer inside temperature is more stable because of less frost on the fin.
- Thanks to longer runtime, the production output is increased.

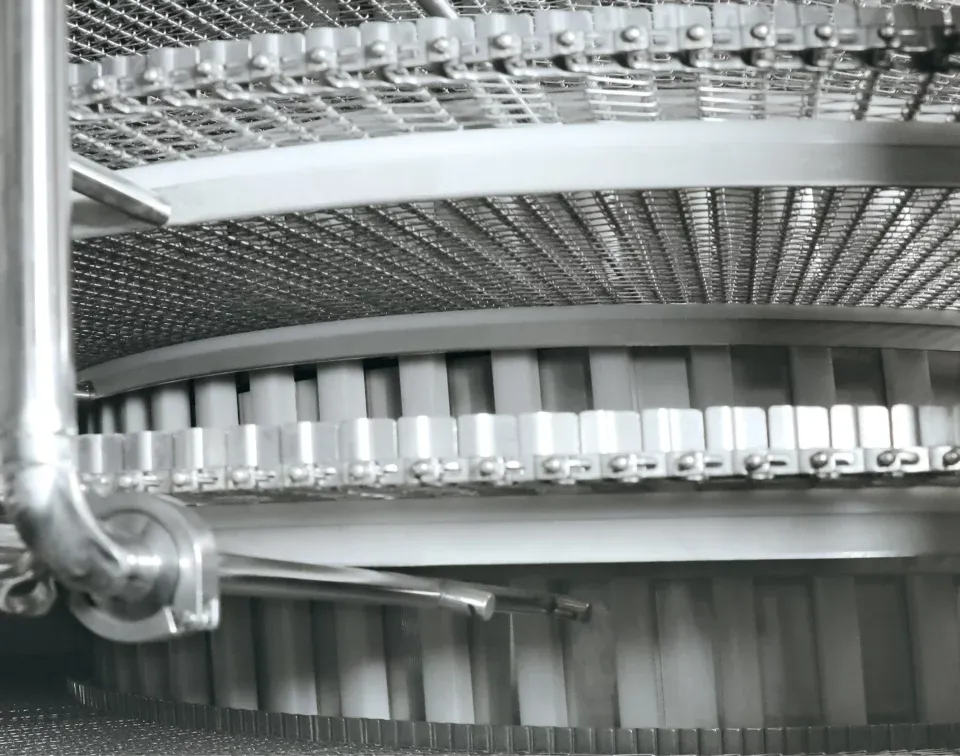

CIP (Cleaning-in-Place)
The system cleans and disinfects the interior of the freezer completely to meet the sanitary requirements of food safety production. Our system design is programmed with tailored CIP (Cleaning-in-Place) recipes to suit various product and needs.
Technical Specifications
Parameters
Available as double spiral or single-drum configurations, with drum diameter, belt width, tiers, refrigerant, defrost, cleaning, and capacity tailored to the product and site layout.
| Structure | Double spiral freezer — two independent drums, shared enclosure |
|---|---|
| Drum diameter | 1,620 – 5,800 mm |
| Layers / Tiers | 6 – 40 |
| Insulated Enclosure | PIR / PU, stainless steel skin both sides |
| Mesh belt width | 520 – 1,372 mm |
| Infeed / Outfeed height | Low-level (~900 mm from floor) — direct conveyor integration |
| Control panel | PLC touchscreen, stainless steel enclosure |
| Refrigerant | NH₃ (Ammonia) / CO₂ / Freon — pump-recirculated or DX |
| Evaporator | Aluminium / Stainless steel tube, aluminium fin, variable fin pitch |
| Defrost | Water / Hot gas / ADF (Air Defrost System) |
| Freezing time | Stepless variable frequency adjustable (typically 15–60 min per product spec) |
| Cleaning | Manual / Belt washer / CIP (Cleaning-in-Place) — programmable |
| Typical lead time | 14–18 weeks (custom-engineered configuration) |
| Design life | 15+ years (structural); 8–10 years (belt, normal operation) |
Design Details
How Each Subsystem Is Engineered
Expand any section below for the engineering approach behind each critical subsystem — with links to detailed Technology pages.
Airflow & Heat Transfer Design
Cold air is delivered through carefully positioned baffles and ducts to create uniform, high-velocity airflow across every product on the belt. Computational fluid dynamics (CFD) modeling during design ensures:
- Air velocity variance ≤ ±15% across entire belt width
- Product dehydration kept below 0.5% for IQF applications
- Air shrouds at infeed/outfeed openings reduce cold loss by ~30%
Defrost Strategy — ADF, Hot Gas, and Water
Three defrost methods are offered, selected based on your production schedule and refrigerant type:
- ADF (Air Defrost System) — Pressurized air pulses clear evaporator ice while production continues. Recovers ~2.5 hrs/day of production time vs manual defrost.
- Hot Gas Defrost — Reverses refrigerant flow to warm evaporator coils. Fastest cycle (8–12 min). Requires 2–3 daily interruptions.
- Water Defrost — Warm water spray over coils. Simple, reliable. Longer cycle time (20–30 min).
CIP (Cleaning-in-Place) & Hygienic Design
Cleaning-in-Place system with programmable wash, rinse, and sanitize cycles. The open-structure belt design, fully welded floor with sloped drainage, and tool-free access hatches enable:
- CIP (Cleaning-in-Place) sanitation cycle: 25–45 minutes (vs 90+ min manual cleaning)
- NSF-compliant hygienic design; all product-contact surfaces accessible without tools
- Programmable recipes for daily deep-clean, between-product flush, or end-of-shift sanitize
→ Full article: CIP (Cleaning-in-Place) & Hygienic Design for Food Freezing Equipment
Insulation & Enclosure Structure
Continuous PIR (polyisocyanurate) panels produced in-house on a German Hennecke foaming line — Square controls the full panel supply chain, not dependent on external panel suppliers:
- Panel thickness: 50–250mm, selected per operating temperature and ambient conditions
- Thermal conductivity: ≤ 0.022 W/m·K; density: 38–42 kg/m³
- Panel joint: cam-lock system with thermal break to eliminate cold bridging
- Optional: fully welded stainless steel interior for maximum sanitation
Automation & Control Architecture
Siemens PLC standard with HMI touchscreen interface. Real-time monitoring and data logging for:
- Individual zone temperatures, belt speed, fan RPM, evaporator performance
- Recipe storage: 50+ product-specific freezing programs (time, temp, fan speed per zone)
- Fault detection with alarm escalation (local HMI + remote notification)
- Optional: VPN-based remote diagnostics by Square engineers — no on-site visit needed for ~70% of troubleshooting cases
Proven in These Food Applications
Chinese Pastry Products
Ideal for baozi, steamed buns, dumplings, spring rolls and parathas across continuous production lines.
Ice Cream
Hardens boxed and portioned ice cream quickly for stable shape, texture and downstream packaging.
Poultry Products (Cooked)
Freezes cooked chicken, nuggets and other prepared poultry products while preserving texture and appearance.
Poultry Products (Raw)
Processes chicken wings, breasts, thighs and fillets with consistent core temperatures and low moisture loss.
Ready Meals
Rapidly cools or freezes packed meals, airline meals and microwave meals for reliable cold-chain handling.
Seafood
Suitable for whole fish, fillets, shrimp, shellfish and octopus with fast, uniform freezing.
Case Studies
Spiral Freezer in Operation Worldwide
Real production lines with performance data — not renderings, not claims. Each installation documented with commissioning data.
Spiral Freezing Solution for Steamed Dumplings
Client Location: ChicagoEquipment Supplier: Square Technology Group Co., Ltd. IQF: Ambient spiral cooler& spiral freezerRefrigeration
The Rise of Cheesy Beef Rolls: A Frozen Food Favorite Evolves
The Cheesy Beef Roll has emerged as a rising star in the frozen food aisle—a
Chicago Fried Chicken Nugget Production Line
Project Overview Square Technology Group delivered a complete fried chicken nugget processing line up to spiral
An Integrated Freeze-Drying Solution for Pet Food Processing
An Integrated Freeze-Drying Solution for Pet Food Processing Canature Processing Ltd. is a global leader
How Chata Foods Kept its Authentic Mexican Flavor During a Major Production Expansion
How Chata Foods Kept its Authentic Mexican Flavor During a Major Production Expansion For over
Double Spiral Freezer and Mycom Refrigeration System Launched at Poultry Factory in Colombia
Double Spiral Freezer and Mycom Refrigeration System Launched at Poultry Factory in Colombia Location Colombia
Dumpling Freezing Solution for ITACI SRL
Dumpling Freezing Solution for ITACI SRL ITACI SRL is a well-established food manufacturer specializing in
Grupo San Antonio Boosts
New Square Spiral Freezer and Refrigeration System Grupo Pecuario San Antonio is one of the
Introduction of Croissant Production Line in Zhiyan Food
Croissant Production Line Shandong Zhiyan Food Co., Ltd Its capacity can reach 52000pcs/h which is
Spiral Freezer / Chiller And Tunnel Chiller For Mercuries F&B
Spiral Freezer, Chiller And Tunnel Chiller Mercuries F&B 2 sets of spiral freezers, chillers and
Australis Seafood: Heavy Duty Spiral Freezer for Whole Salmon
Heavy Duty Spiral Freezer for Whole Salmon Australis Seafood a solution for a spiral freezer
Camanchaca-Spiral Freezer With Remote Monitor And Diagnosis System For Salmon Fillets
The customerPesquera Camanchaca is a Chilean company, specialized in mussels, langostino lobsters and Atlantic salmon.
Mexico PATSA-Spiral Freezer With Plastic Modular Belt For Chicken Parts
The customerProductos Agropecuarios de Tehuacán, S. DE R.L. DE C.V. (PATSA) is a Mexican company specialized
Pre-Proof Production Line For Croissant
The customer WEDOME is a famous Chinese bakery chain enterprise founded in 1996 and headquartered
Spiral Freezer IQF Loaded in the Container and Ready for Delivery to the United States
It is the hottest summer in 10 years. Our workers are still working hard to
Complete Ready Meal Production Line in Europe
The Square Technology Installation crew just finished a complete ready meal production line , which
Spiral Freezer And Conveyor Line For Ready Meal Plant In Europe
The Square Technology Installation crew just finished a complete ready meal production line , which
Spiral Freezer For Holiland Bakery, One Of The Largest Bakery Chain In China
Square Technology’s just successfully installed a spiral freezer and spiral cooler for Holiland, a major
